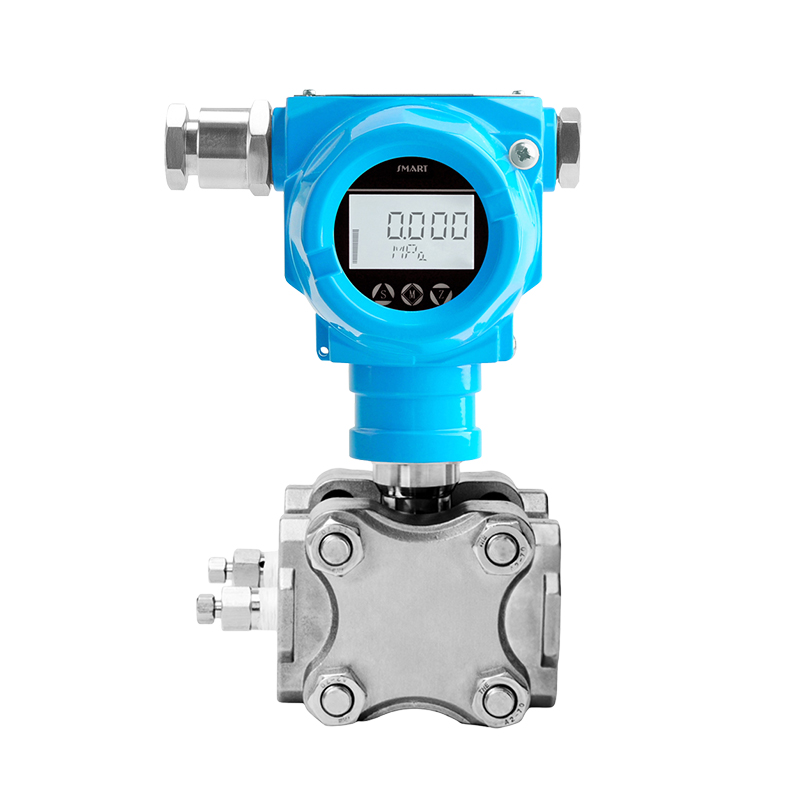

ATEX, IECEx certifications

Pressure types: Differential pressure
Measuring range: 6kPa-10MPa, Please refer to the ordering information chapter
Output signal: 4-20mA, 4-20mA+HART, 1-5VDC low power consumption
Reference accuracy: ±0.075%URL, optional ±0.05%URL
Hazardous Ratings: Zone 1/2, Zone 21/22

Power Supply: AC85V~260V/DC24V3A
Sensor Type: Vanadium Oxide
Uncooled Detector Resolution: 384 × 288
Frame Rate: 50 Hz/50 fps
Detection range: 0-99999 ppm.m
Effective Pixels: 2 millio
Degree of Protection: IP68 (2m/2h)
Ambient temperature: -40℃~+60℃
Hazardous Ratings: Zone 1/2, Zone 21/22

Power Supply: AC85V~260V/DC24V 3A
Detection range: 0-99999 ppm.m Monitoring Distance:≤150m
Image Sensor: 1/2.8” Progressive Scan CMOS
Focal Length: 4.8-120mm, 25x optical zoom
Degree of Protection: IP68 (2m/2h)
Ambient temperature: -40℃~+60℃
Hazardous Ratings: Zone 1/2, Zone 21/22

Power Supply: AC85V~260V/DC24V 3A
Thermal Sensitivity, NETD: ≤40mK
Pixel Pitch: 12μm
Image Sensor: 1/2.8” Progressive Scan CMOS
Degree of Protection: IP66/IP68(2m/2h)
Hazardous Ratings: Zone 1/2, Zone 21/22

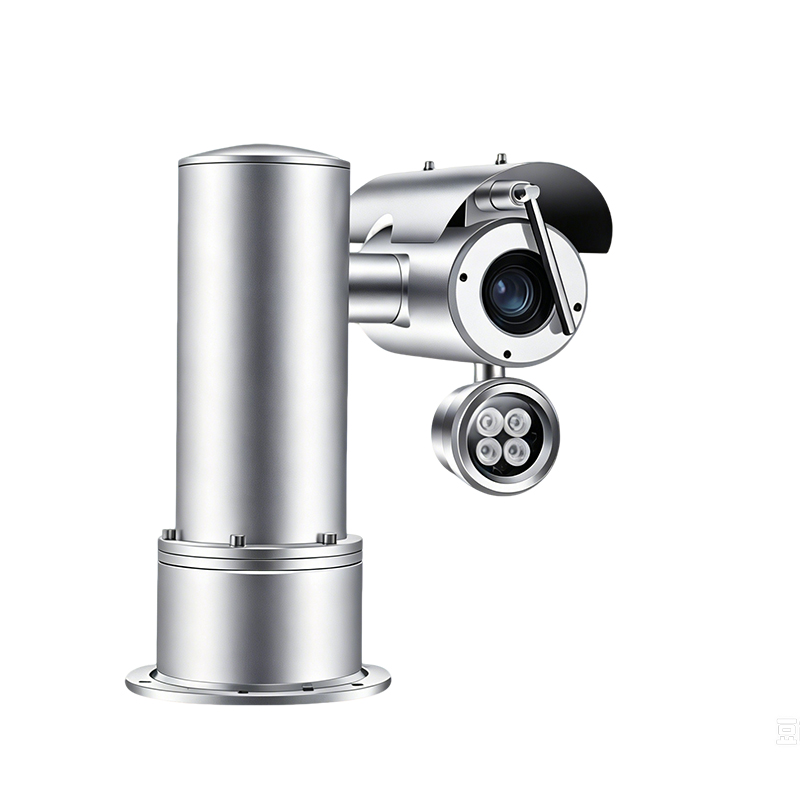

Power Supply: AC85V~260V/DC24V 3A
Focal Length: 5.5-110mm, 20x Optical Zoom
Infrared Distance: 100 meters
Image Sensor: 1/2.8” Progressive Scan CMOS
Degree of Protection: IP68
Ambient temperature: -40℃~+60℃
Hazardous Ratings: Zone 1/2, Zone 21/22

Power Supply: AC85V ~ 260V/DC 12V/POE (Optional)
Focal Length: 5.5-110mm, 20x Optical Zoom
Infrared Distance: 110 meters
Image Sensor: 1/2.8” Progressive Scan CMOS
Degree of Protection: IP68
Ambient temperature: -40℃~+60℃
Hazardous Ratings: Zone 1/2, Zone 21/22

Power Supply: AC85V~260V /DC12V/POE (Optional)
Focal Length: 5.5-110mm, 20x Optical Zoom
Infrared Distance: 100 meters
Image Sensor: 1/2.8” Progressive Scan CMOS
Degree of Protection: IP68
Ambient temperature: -40℃~+60℃
Hazardous Ratings: Zone 1/2, Zone 21/22

Power Supply: AC85V~260V/DC12V/POE (Optional)
Infrared Distance: 100 Meters
Image Sensor: 1/2.8” Progressive Scan CMOS
Main Stream: 50Hz/25fps
Ambient temperature: -15℃~+60℃
Degree of Protection: IP66
Hazardous Ratings: Zone 1/2, Zone 21/22

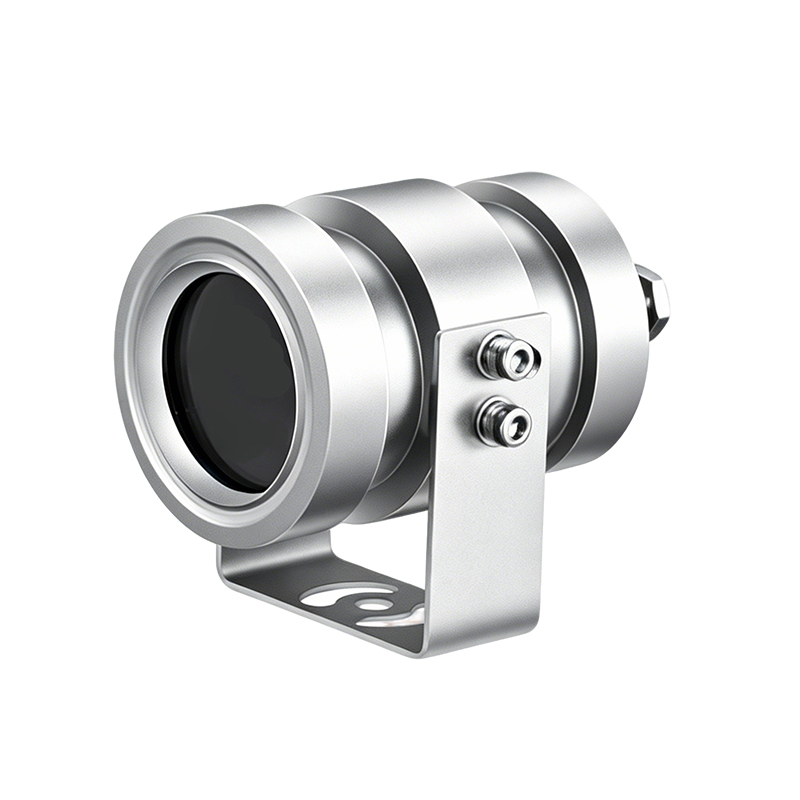

Power Supply: DC12V/POE optional
Pixels: 5M
Infrared Distance: 30 Meters
Main Stream:25fps
Image Sensor: 1/2.8" Progressive Scan CMOS
Degree of Protection: IP68 (2m/2h)
Ambient temperature: -40℃~+60℃
Hazardous Ratings: Zone 1/2, Zone 21/22

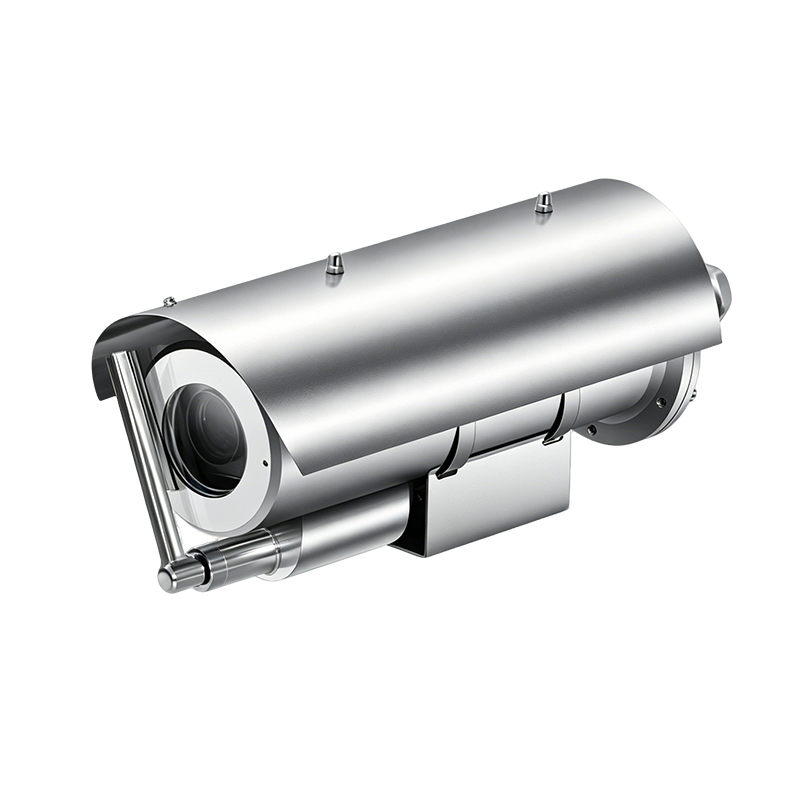

Voltage: AC85V～260V/DC12V/POE
Lmage Sensor: 1/2.8” Progressive Scan CMOS
Focal Length: 5.5-110mm / 20x Optical Zoom
3D Noise Reduction: Support
Degree of Protection: IP68
Ambient temperature: -40℃~+60℃
Hazardous Ratings: Zone 1/2, Zone 21/22

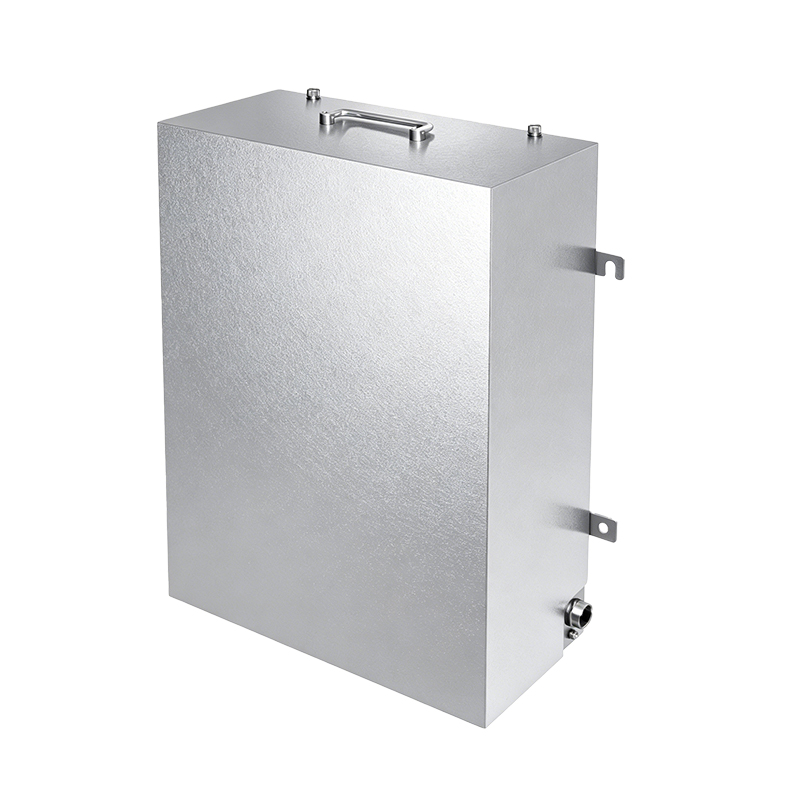

Voltage: DC24V 2A
Water flow speed: 500mL/min
Water spray volume per time: 40mL
Water tank capacity:15L
Weight: Empty box/20kg; full box/35kg
Dimension: 436x 202x652mm
Ambient temperature: -15℃~+60℃
Degree of Protection: IP66
Hazardous Ratings: Zone 1/2, Zone 21/22

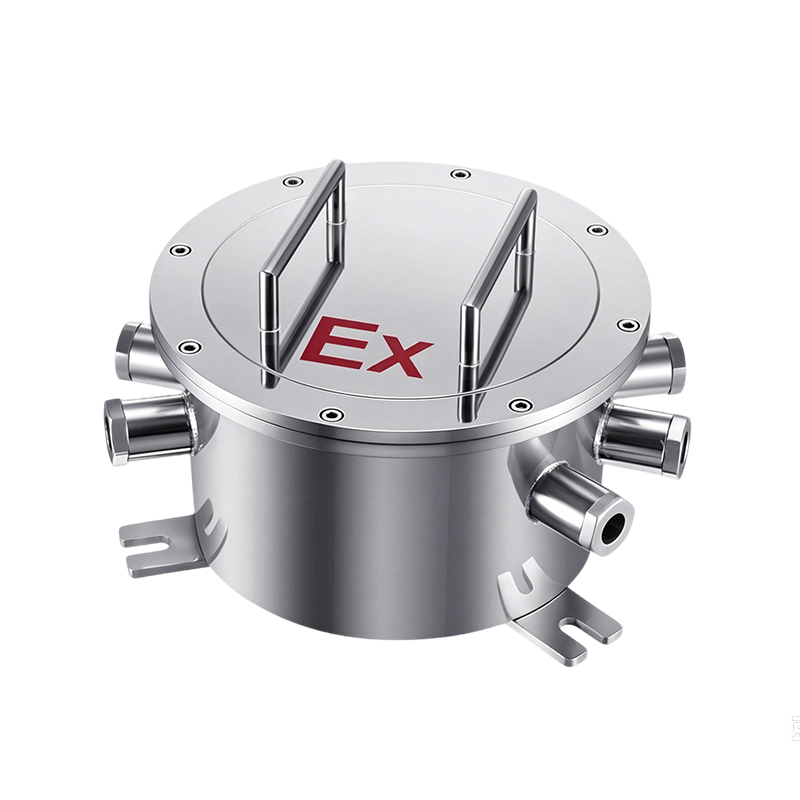

Voltage: DC9~36V/AC24~48V/AC85~260V
Dimension: Ø233x128mm
Ambient temperature: -40℃~+60℃
Degree of Protection: IP66/IP68 (2m, 2h) / IP69
Hazardous Ratings: Zone 1/2, Zone 21/22

Voltage: DC9~36V/AC24~48V/AC85~260V
Dimension: 350x350x150mm
Ambient temperature: -40℃~+60℃
Degree of Protection: IP66/IP68 (2m, 2h) / IP69
Hazardous Ratings: Zone 1/2, Zone 21/22

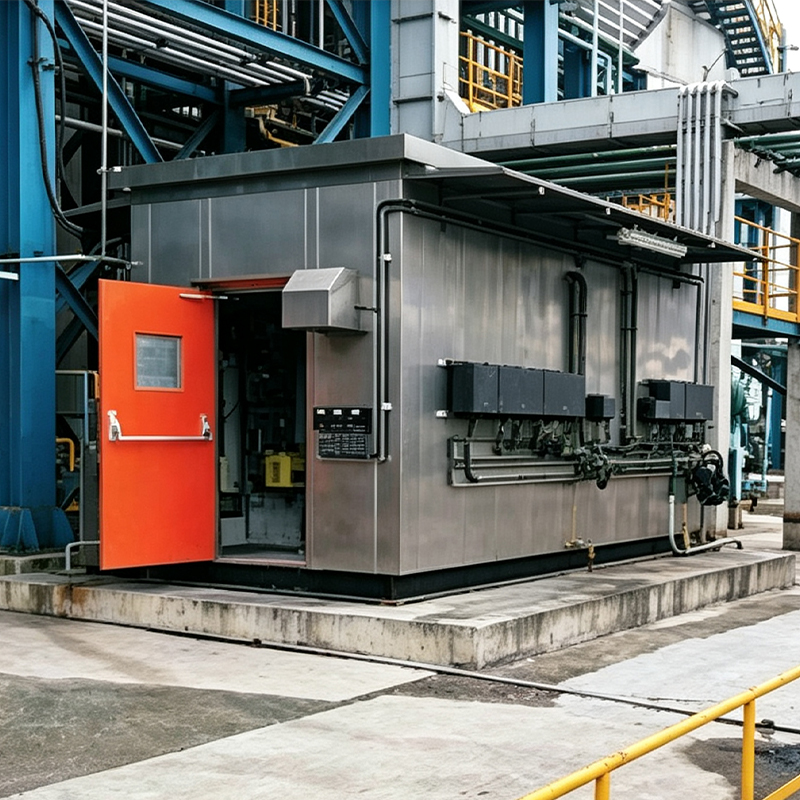

1. The main body of the cabin (double-layer structure,
with insulation and fire-resistant materials filled in the middle)
2. Indoor hazardous gas concentration monitoring system
3. Sound and light alarm interlocking system
4. Equipment power distribution system
5. Power and remote signal conversion signal box
6. Positive pressure control system
7. Hazardous Ratings: Zone 1/2, Zone 21/22

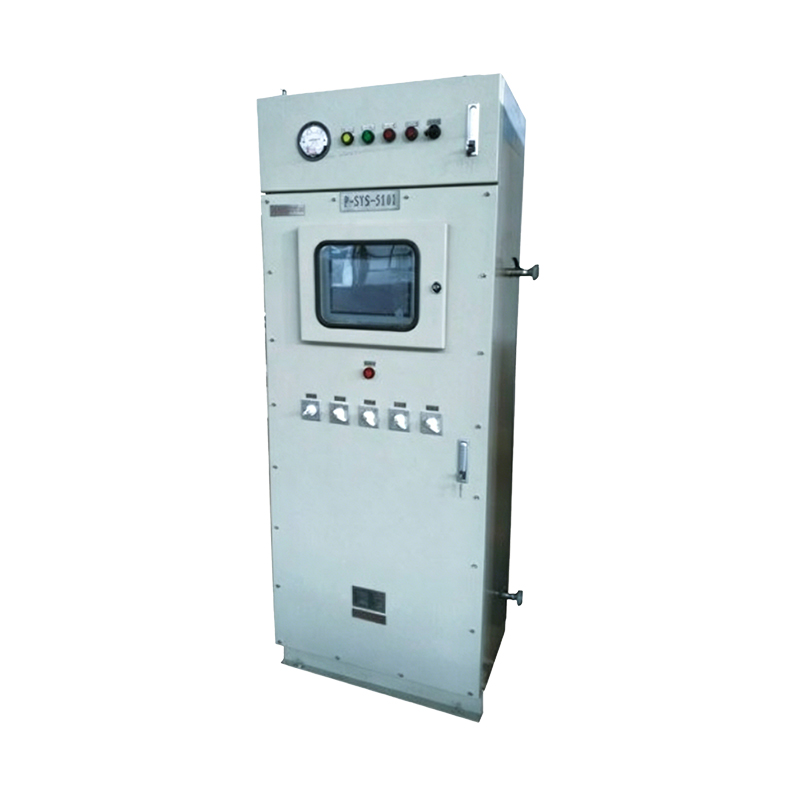

1. Control Power Supply: 220VAC,380W
2. Operating Positive Pressure Range: 150Pa–900Pa
900Pa: Automatic air exhaust，<150Pa: Automatic air replenishment
3. Critical Positive Pressure Values: 1000Pa: Manual air exhaust
<70Pa: Automatic power cut-off
4. Air Source: Clean air or protective gas with pressure ≥0.4MPa
5. Hazardous Ratings: Zone 1/2, Zone 21/22
